产品中心Products

分子光谱 · 原子光谱 · 工业测量及生产Molecular Spectroscopy · Atomic Spectroscopy · Industrial Measurement

首页Home / 产品中心Products
inVia-Qontor显微共聚焦拉曼光谱仪
分子光谱 · 核心产品Molecular Spectroscopy

显微共聚焦激光拉曼光谱仪Confocal Raman Microscope

Renishaw · inVia-Reflex / inVia-Qontor / inVia Basis（英国）

分子光谱测试设备，广泛用于物质化学结构分析。任何物理状态的样品无需制备，即可快速、无损测试。高度自动化操作、维护方便、性能优越。Molecular spectroscopy platform for chemical structural analysis. Any sample state, no preparation, rapid and non-destructive measurement. Highly automated and easy to maintain.

主要特点Key Features
  • 显微共聚焦设计，空间分辨与深度分辨测试Confocal design for spatial and depth resolution
  • 可选 LiveTrack 技术：Mapping 扫描同时逐点实时自动聚焦，不拖慢扫描速度，大幅提升成像质量Optional LiveTrack: real-time auto-focus at every point during mapping without slowing the scan
  • 小型显微拉曼模块 uRaman：超小体积，可与任何显微镜结合，光斑 <1µm，可选 532/633/785nm 及 MappingCompact uRaman module: combinable with any microscope, spot <1µm, 532/633/785nm options, optional mapping
  • 内窥式探头与大型三维样品台可选Endoscopic probe and large 3-axis encoded stage options
  • 原位催化反应池：常温至 1000℃，惰性/氧化/还原气氛In-situ catalytic cell: RT to 1000°C under inert/oxidising/reducing atmospheres
应用：Applications: 材料科学、生物医药、半导体、地质矿物、高分子、腐蚀防护、公安司法、考古与艺术Materials, biomedicine, semiconductors, geology, polymers, corrosion, forensics, archaeology & art
查看详情 →View Details →
科研级激光器
自主研发Self-Developed

科研级激光器Research-Grade Lasers

QUANTUMTECH · QTM 系列（英国）

高光束质量光谱级激光器，极佳的单色性、稳定性和完美的光斑，是光谱设备激发光源的必然选择。波长覆盖从紫外到近红外。High-beam-quality spectroscopic lasers with excellent monochromaticity, stability and spot profile — the natural choice for spectrometer excitation.

主要特点Key Features
  • 波长 266nm – 1064nm 全波长系列可选，连续 / 脉冲Full wavelength range 266–1064nm, CW and pulsed
  • 激光输出功率最高可达瓦级Output power up to watt level
  • TEM00 模，光束直径 1–2mm，线偏振，极小发散角TEM00 mode, beam diameter 1–2mm, linearly polarised, very low divergence
  • 典型波长：266/375/405/445/458/473/488/515/532/561/633/638/660/685/785/808/830/852/905/940/976/1064nm 等Typical wavelengths include 266/375/405/445/458/473/488/515/532/561/633/638/660/685/785/808/830/852/905/940/976/1064nm
应用：Applications: 拉曼光谱、时间分辨拉曼、相干拉曼、太赫兹等分子光谱设备，以及激光诱导元素分析设备Raman, time-resolved Raman, coherent Raman, THz spectroscopy, and laser-induced elemental analysis
查看详情 →View Details →
高精度冷热台
原位变温附件In-situ Temperature

高精度冷热台Precision Heating / Freezing Stage

Linkam · THMS（英国）

专为原位变温光谱测试设计的高精度控温装置，温度从 -196℃ 到 600℃，0.1℃ 变温步长。High-precision temperature-controlled stage designed for in-situ variable-temperature spectroscopy, from -196°C to 600°C with 0.1°C steps.

主要特点Key Features
  • 宽温区：-196℃ 至 600℃，全程温度精度与稳定性 0.01℃ / <0.01℃Wide range -196°C to 600°C, accuracy/stability 0.01°C / <0.01°C
  • 光孔直径 1.3mm，超薄窗口 0.17mm，最小工作距离 4.5mmAperture 1.3mm, ultra-thin window 0.17mm, working distance from 4.5mm
  • 加热/冷冻速率 0.01–150℃/min，样品 XY 移动 16mmHeating/cooling rate 0.01–150°C/min, XY travel 16mm
  • 气密样品腔室，可充入保护性气体；独立温度控制（计算机控制可选）Gas-tight chamber with protective gas, independent control, optional computer control
应用：Applications: 地质流体包裹体研究、原位变温拉曼 / 红外 / XRD 微区测试Fluid inclusion studies, in-situ variable-temperature Raman, IR and XRD micro-analysis
查看详情 →View Details →
无液氦制冷机
超低温附件Ultra-low Temperature

无液氦制冷机Cryogen-Free Cryostat

Oxford Instruments · Optistat（英国）

完全无需液氦即可将样品温度降至 3K 的光谱学恒温器，模块化设计，换样便捷，为多种光谱学技术优化。Cryogen-free optical cryostat cooling samples to 3K without liquid helium. Modular design, easy sample change, optimised for multiple spectroscopy techniques.

主要特点Key Features
  • 低温温区：<3K 至 300K，制冷功率 0.2WTemperature range <3K to 300K, cooling power 0.2W
  • 先进减震支架，同时减小样品与光学平台振动Advanced anti-vibration mount minimises sample and platform vibration
  • 侧面窗口换样设计，换样简单快捷Side window sample access for fast and simple sample exchange
  • 光通路数值孔径 f/1，多种窗片材料可选；电学样品托选项Optical access NA f/1 with multiple window materials; electrical sample holder option
应用：Applications: 超低温微区分析、半导体发光、拉曼、红外、XRDUltra-low-temperature micro-analysis, semiconductor luminescence, Raman, IR and XRD
查看详情 →View Details →
激光诱导击穿光谱仪
原子光谱Atomic Spectroscopy

激光诱导击穿光谱仪 LIBSLaser-Induced Breakdown Spectroscopy

Applied Spectra · J200（美国）

微区元素分析仪，采用激光光谱技术定性和定量分析材料中的元素含量。无需样品处理，数秒钟得到测量结果，可检测 70 多种元素且多元素同时检测。Micro-spot elemental analyzer using laser spectroscopy for qualitative and quantitative elemental analysis. No sample prep, results in seconds, 70+ elements simultaneously.

主要特点Key Features
  • 检出限达 ppm 级，可检测化学周期表上几乎所有元素Detection limits to ppm, covering almost the entire periodic table
  • 微区检测，检测点尺寸小至 5µmMicro-spot analysis down to 5µm
  • 3D 全自动操作台，自动扫描成像，直观展现元素空间分布Fully automated 3D stage with scanning imaging of elemental distribution
  • 可与 ICP-MS 联用作为进样系统（激光剥蚀），获得更高检出限与精度Couples to ICP-MS as laser-ablation sample introduction for lower detection limits
应用：Applications: 地质矿物元素测试、珠宝微量元素、环境污染（重金属）检测、RoHS 及工业材料分析Geological minerals, jewellery trace elements, environmental heavy-metal screening, RoHS and industrial materials
查看详情 →View Details →
电化学工作站
工业测量及生产Industrial Measurement

电化学工作站Electrochemical Workstation

Gamry · Interface 1000 / 1010 / 5000，Reference 600 / 620 / 3000 / 3020（美国）

高性能科研级恒电位仪 / 恒电流仪 / 零电阻电流仪，广泛用于腐蚀测量、电池测试与研究、传感器发展和物理电化学测量等领域。High-performance research potentiostats/galvanostats/ZRA, widely used in corrosion, battery testing, sensor development and physical electrochemistry.

主要技术Key Techniques
  • 电化学阻抗谱 EIS：恒电位 / 恒电流 / 混合阻抗 / Mott-SchottkyEIS: potentiostatic, galvanostatic, hybrid and Mott-Schottky
  • 腐蚀：DC 腐蚀技术（14 种）、电化学噪声、电化学频率调制、临界点蚀温度（ASTM G150）Corrosion: DC techniques, electrochemical noise, EFM, CPT per ASTM G150
  • 电池 / 燃料电池 / 超级电容器：专用 PWR 800 软件包Battery, fuel cell, supercapacitor testing with PWR 800 software
  • 物理电化学：循环伏安、计时电流 / 库仑 / 电位、差分脉冲、方波伏安等；膜与涂层 4 探头 EISPhysical electrochemistry: CV, chronoamperometry/coulometry/potentiometry, DPV, SWV; 4-probe membrane/coating EIS
  • 扩展附件：EQCM 石英微天平、RDE 旋转圆盘电极、电化学池、法拉第箱、大电流系统（氢能）Accessories: EQCM, RDE, electrochemical cells, Faraday cage, high-current system
应用：Applications: 腐蚀研究与防护、电池与储能、电催化、传感器、涂层与膜、材料腐蚀评价Corrosion, energy storage, electrocatalysis, sensors, coatings and membranes
查看详情 →View Details →
全自动六头电热熔融炉
样品前处理Sample Preparation

全自动六头电热熔融炉Automatic Fusion Furnace

TheOX · PRK-FE00x（加拿大）

多功能高温熔融炉，制备用于 AA、ICP、湿法化学分析的溶液，以及制备玻璃片进行 XRF 分析。氧化物样品与硼酸锂助熔剂混合，加热熔融形成极其均一的玻璃片或酸溶液。Versatile fusion furnace preparing solutions for AA, ICP and wet chemistry, and glass discs for XRF. Oxide samples fused with lithium borate flux into homogeneous discs or solutions.

主要参数Key Specifications
  • 最多同时 6 个样品熔融制样，每小时完成 24–30 个样品Up to 6 samples per run, 24–30 samples per hour
  • 加热室温度可达 1200℃，加热组件高达 1800℃Chamber temperature to 1200°C, heater elements to 1800°C
  • 380–415VAC 3P+N，输入功率 6.8KVA380–415VAC 3P+N, input power 6.8KVA
应用：Applications: 矿产地质样品、钢铁与合金、水泥陶瓷、铝土矿、硫化物、催化剂、聚合物及药物样品的 XRF / AA / ICP 分析制样Sample preparation for XRF, AA and ICP of minerals, metals, cements, ceramics, bauxite, sulphides, catalysts, polymers and pharmaceuticals
查看详情 →View Details →
电子直线加速器
自主研发 · 工业应用Self-Developed · Industrial

双能量实时切换电子直线加速器Dual-Energy Electron Linear Accelerator

QUANTUMTECH · QTM-C500（中国）

用于工业无损检测与辐照加工的电子直线加速器，采用高频逆变充电技术，能量转换效率高，是目前国内市场上最节能的加速器之一。Electron linear accelerator for industrial NDT and irradiation, featuring high-frequency inverter charging for high energy efficiency.

主要特点Key Features
  • 高频逆变充电技术，能量转换效率高，最节能High-frequency inverter charging, most energy-efficient
  • 高压软启动，减小对外电网冲击；重复频率可调并带反馈信号HV soft-start; adjustable repetition rate with feedback monitoring
  • 抗辐射加固技术，可长期运行于射线环境Radiation-hardened components for long-term operation
  • 双能量实时切换，检测精度更高（部分型号）Dual-energy real-time switching for higher inspection accuracy
应用：Applications: 工业 CT、超大金属铸件/焊接无损检测、集装箱检测、高分子材料辐照改性、食品与医疗器械辐照消毒、宝石辐照改色、半导体辐照改性Industrial CT, NDT of large castings/welds, container inspection, polymer irradiation, food/medical sterilisation, gemstone colouring, semiconductor modification
查看详情 →View Details →

更多产品More Products

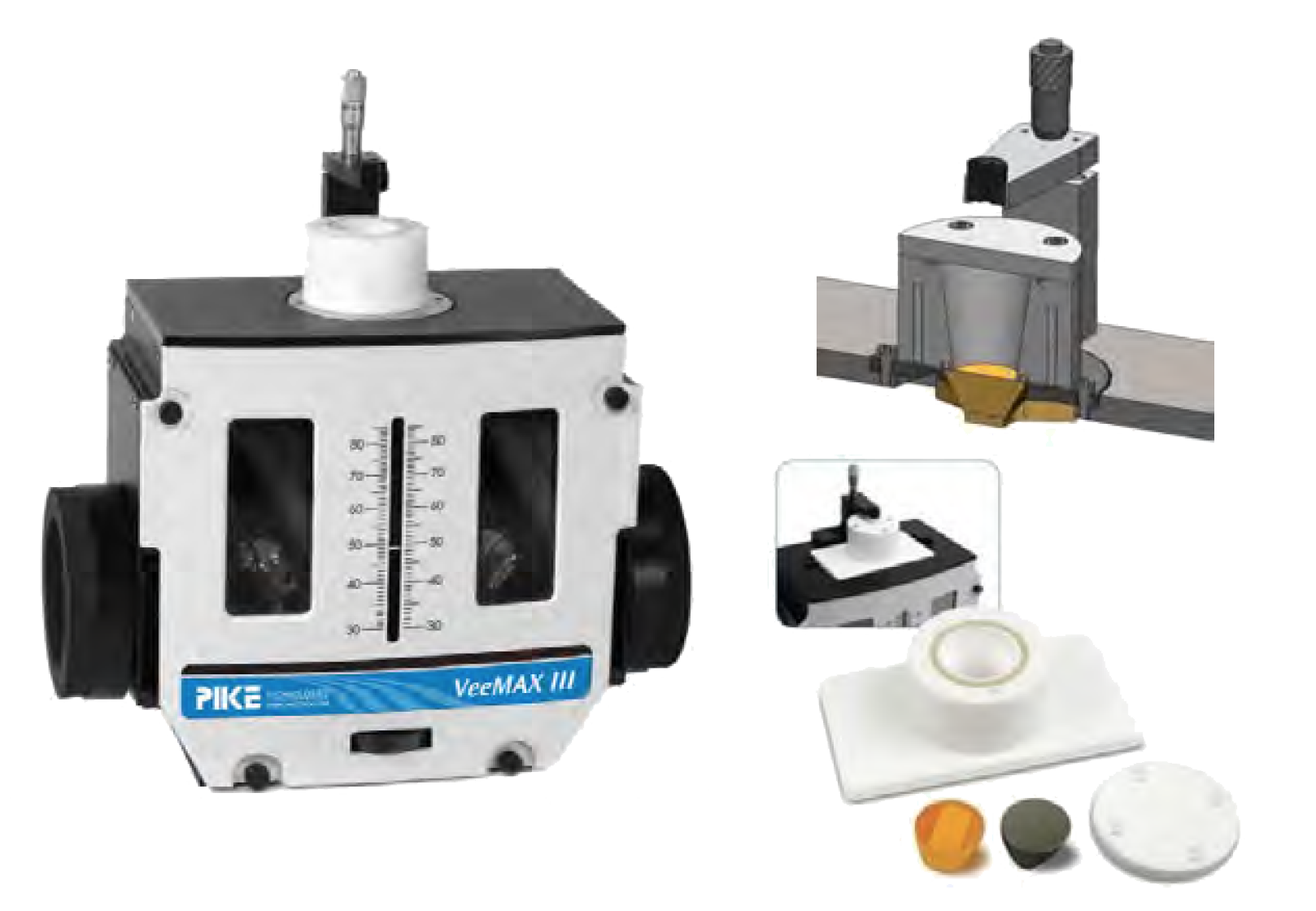

红外光谱仪
红外光谱仪IR Spectrometer
Molecular Spectroscopy
与拉曼互补的分子结构分析手段，满足不同样品与分析需求。Complementary molecular analysis to Raman for various samples and needs.

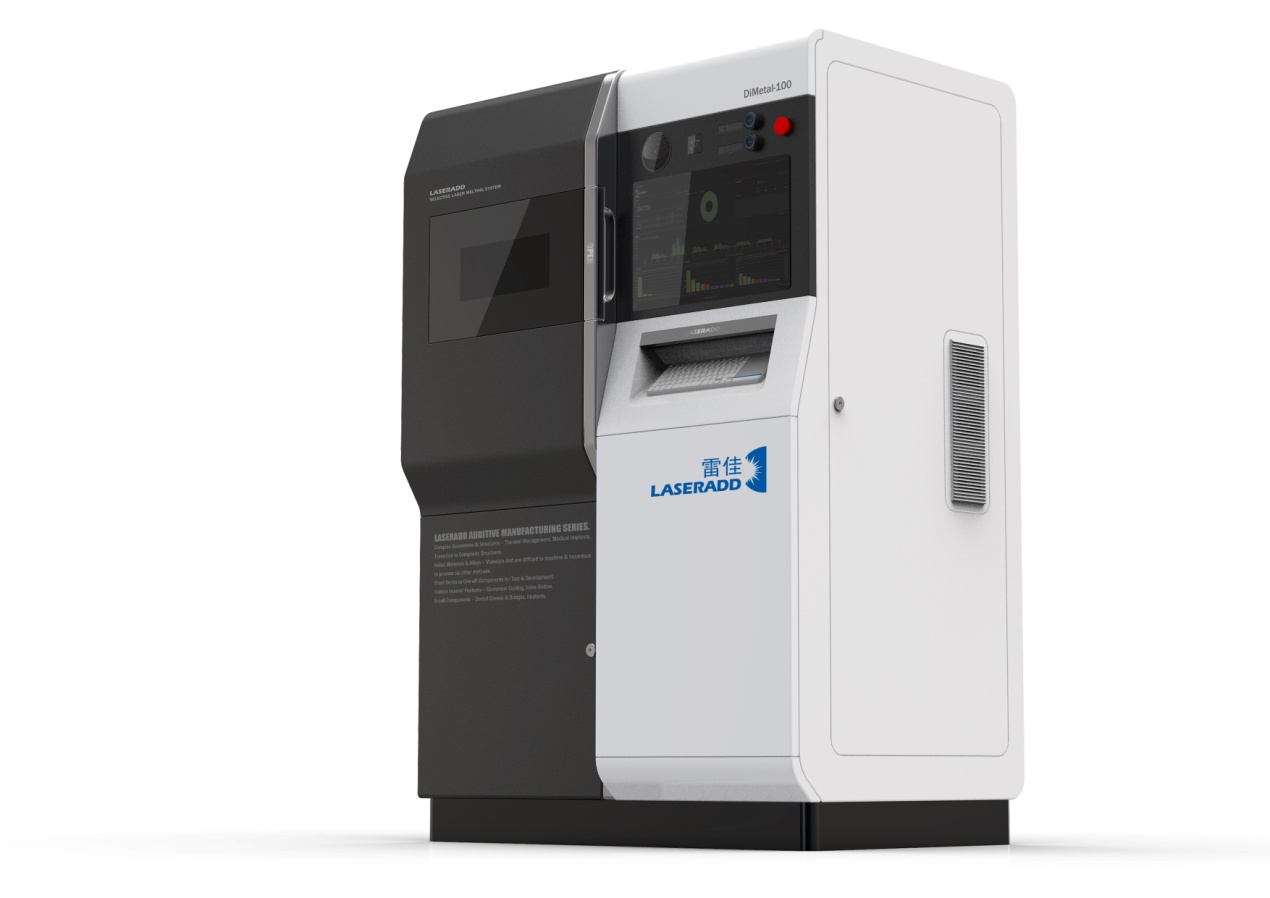

金属3D打印机
金属 3D 打印机Metal 3D Printer
Industrial Additive Manufacturing
雷佳增材制造 Dimetal 系列金属 3D 打印设备。Dimetal-series metal 3D printing systems.

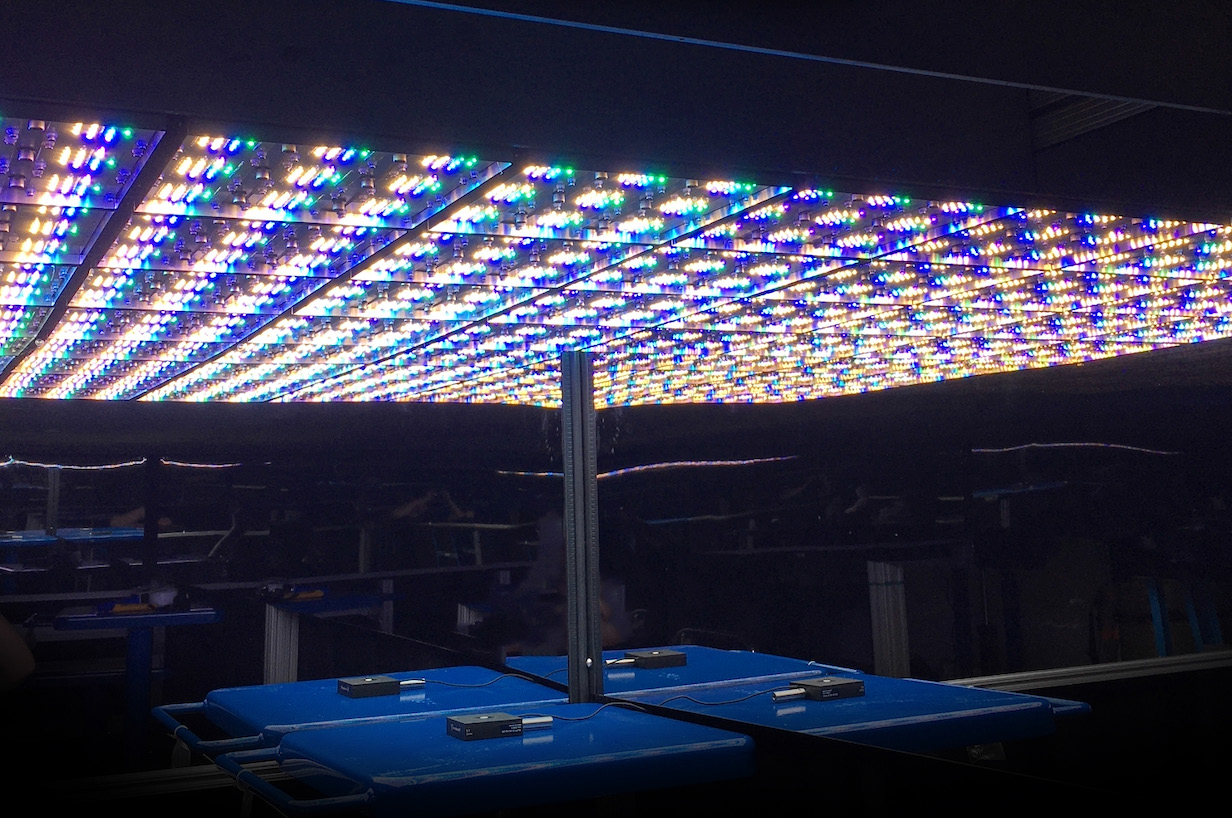

模拟太阳光源
模拟太阳光源Solar Simulator
Programmable LED Full-Spectrum Source
G2V Optics 程控 LED 全光谱太阳模拟光源，用于光伏与材料测试。G2V Optics programmable LED full-spectrum solar simulator for PV and materials testing.
